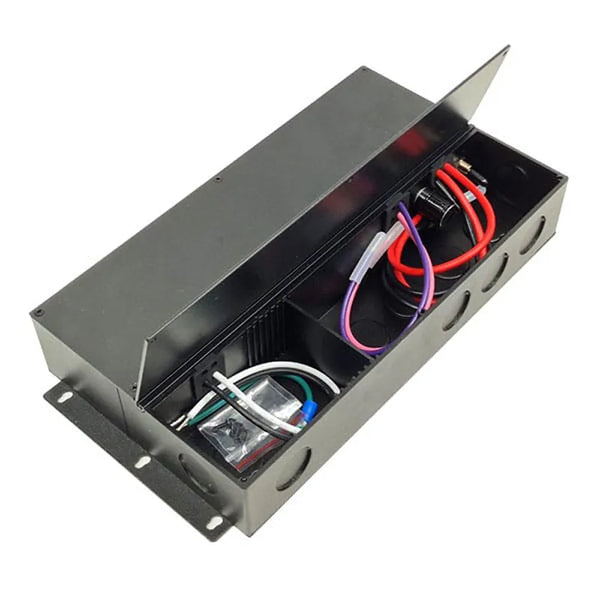

150W LED Driver 5-IN-1 Dimmable With Junction Box | Ribbon Lighting Series

150W LED Driver 5-in-1 Dimmable with Junction Box | Ribbon Lighting Series – High Efficiency, Versatile, and Built for Performance

Upgrade your LED lighting system with the 150W 5-in-1 Dimmable LED Driver with Junction Box, engineered for reliability, performance, and versatility. Designed to power 24V DC LED lighting applications, this high-efficiency driver is ideal for residential, commercial, and industrial lighting systems. It supports 5-in-1 dimming (Triac, ELV, 0-10V, 1-10V, and PWM), making it compatible with most dimmer controls on the market, ensuring smooth and flicker-free dimming.

Built to last, this LED driver offers robust protection features, including short-circuit protection, over-voltage protection, and hiccup mode recovery, to safeguard your system. With a power factor of 0.95 and efficiency up to 85%, it reduces energy loss and maximizes output. The included junction box ensures a clean, easy, and code-compliant installation.

Rated for dry, damp, and wet locations, and with an operating temperature range from -22°F to 140°F, this driver is ideal for both indoor and outdoor environments. Whether you're illuminating under-cabinet lighting, architectural strips, signage, or large-scale installations, this driver delivers reliable, consistent 24V power.

Key Features:

• Input Voltage: 100–277V AC | Output Voltage: 24V DC ±0.5V

• Max Output Current: 12.5A | Max Output Power: 150W

• High Efficiency: Up to 85% @ 220V AC

• Power Factor: 0.95

• Dimming Compatibility: 5-in-1 (Triac, ELV, 0-10V, 1-10V, PWM)

• Protection Features: Short-Circuit, Over-Voltage, and Auto Recovery

• Rugged Design: Junction Box Included for Easy Installation

• Durability: Operating Temp -22°F to 140°F | Storage Temp -40°F to 176°F

• Certified for Use in: Dry, Damp, and Wet Locations
