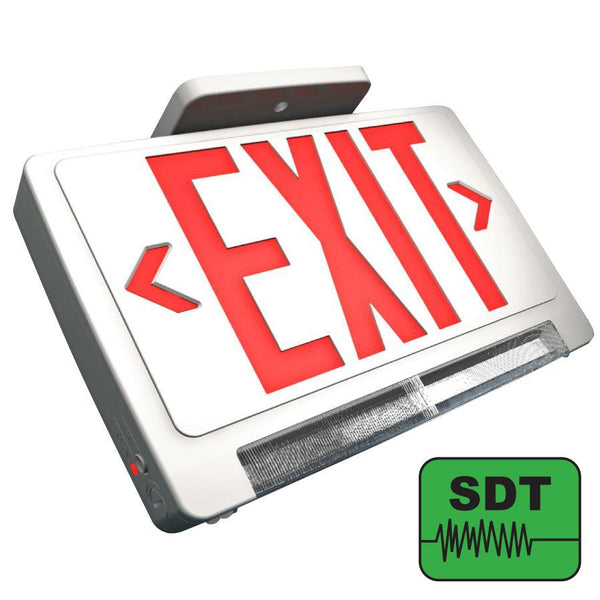

Thermoplastic Light Bar Combo Exit Sign -SDT Feature

Product Description

Unique, new design combines an energy-efficient LED EXIT sign with an LED emergency light into one low-profile unit
EZ snap-out chevron directional indicators
UL listed for damp locations & meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes

Dual 120V / 277V voltage
Charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing
LVD (low voltage disconnect) prevents battery from deep discharge
Long-life, maintenance-free, rechargeable NiCd battery
Internal solid-state transfer switch automatically connects the internal battery to LED Board/light pipe for minimum 90-minute emergency illumination
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Universal surface mount, wall or ceiling, with EZ-snap thermoplastic mounting canopy, which snaps into place making installation quick & easy.

SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.

Injection-molded, engineering-grade, V-0 flame retardant, high-impact, thermoplastic in white or black finish

Ultra-bright, energy efficient white LED emergency lighting
High-performance smooth thermoplastic reflector and polycarbonate “light pipe” lens for optimal light distribution and resistance to discoloration.
Adjustable light pipe allows for optimal use of light output
Long-lasting, energy efficient Red or Green LED exit sign

Five Year Warranty on all electronics and housing. Batteries are pro-rated warranted for 5 years.

More Exit Lighting

$77.56 /each

$16.00 /each

SKU(s)	RHLED1-W
Housing...	White Single Head \| White Double Head \| Black Single Head \| Black Double Head
Optiona...	None \| Self-Diagnostic \| High Lumen (12 LED's 1.5W) \| Self-Diagnostic AND High Lumen
View Spec Sheet

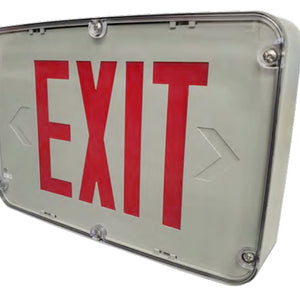

SKU(s)	MRHLED1-PWP-GY
# of He...	Single Head Gray Polycarbonate \| Single Head Black Polycarbonate \| Double Head Gray Polycarbonate \| Double Head Black Polycarbonate
View Spec Sheet

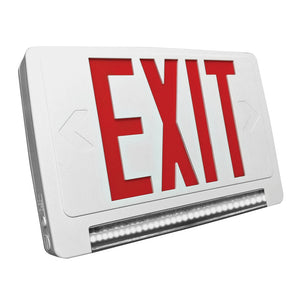

SKU(s)	CLPU2RW-RC
UPC	655746010280
Letter ...	Red Letter - White Housing \| Green Letter - White Housing \| Red Letter - Black Housing \| Green Letter - Black Housing
View Spec Sheet
