SKU(s) | 1301-7W |
UPC | 032664750878 |
Color | White |
Width | 0.88 in |
Length | 1.31 in |
Height | 3.28 in |
Certs |
![]() ![]() |
![]() |

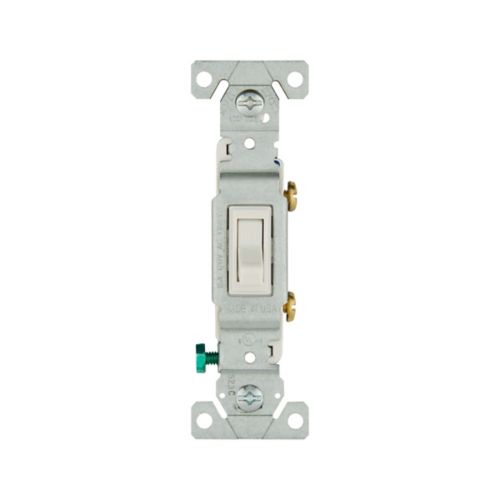

The Eaton 1301-7W is a high-quality residential-grade single-pole toggle switch engineered to provide reliable control for a variety of lighting and motor loads. Rated at 15 amps and 120 volts, this switch is designed for flush mounting in standard electrical boxes, making it an ideal choice for homes and residential buildings.
Constructed from durable white polycarbonate, the Eaton toggle switch offers long-lasting performance and a clean, professional appearance. It supports #14-10 AWG wiring with both side and push wire connection methods, providing versatile installation options to fit most wiring preferences. The screw terminals ensure secure and stable connections, rated to withstand a torque of 14 lbf-inch.
Compatible with multiple load types—including incandescent, LED, CFL, halogen, fluorescent, motor control, fan, electronic low voltage (ELV), and magnetic low voltage (MLV) lighting—this switch accommodates a wide range of applications, enhancing its functionality across various lighting setups.
Certified by cULus, RoHS compliant, and NOM listed, the Eaton 1301-7W meets stringent safety and quality standards for residential electrical devices. Its reliable performance, easy installation, and broad load compatibility make it a trusted choice for electricians and homeowners seeking durable, efficient switch solutions.
Key Specifications:
Voltage Rating: 120V AC
Amperage Rating: 15A
Wiring Method: Side and Push wire
Wire Size Compatibility: #14-10 AWG
Number of Poles: Single-pole
Mounting: Flush mount
Material: Polycarbonate (white)
Load Compatibility: Incandescent, LED, CFL, Halogen, Fluorescent, Motor Control, Fan, ELV, MLV
Torque Rating: 14 lbf-inch
Certifications: cULus Listed, RoHS Compliant, NOM
$4.95 /each
SKU(s) | 1242-7W-BOX |
UPC | 032664750168 |
Color | White |
Width | 0.88 in |
Length | 1.31 in |
Height | 3.28 in |
Wire | #14-10 AWG |
![]() |
$1.80 /each
SKU(s) | PJ5W |
UPC | 032664580406 |
Color | White |
Width | 10.37 in |
Length | 0.08 in |
Height | 4.5 in |
Certs |
![]() ![]() |
![]() |
$1.95 /each
SKU(s) | 1107W |
UPC | 032664512483 |
Color | White |
Voltage | 125V |
Width | 0.69 in |
Length | 1.3 in |
Height | 3.81 in |
Wire | #14-10 AWG |
Certs |
![]() ![]() |
![]() |
$9.75 /each
SKU(s) | PJS264W |
UPC | 032664751011 |
Color | White |
Width | 8.56 Inch |
Length | 0.08 Inch |
Height | 4.87 Inch |
Certs |
![]() |
![]() |
