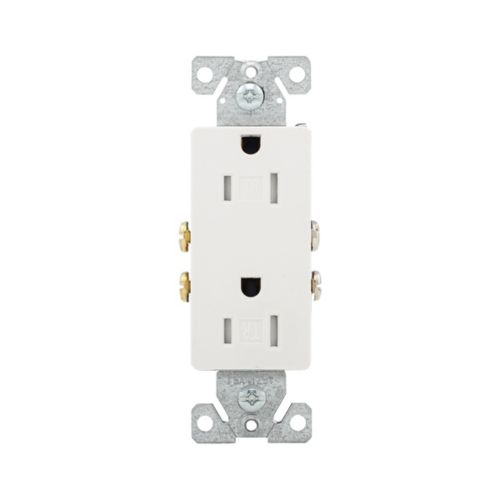

15 Amp Tamper-Resistant Decorator Receptacle | 125V | Residential & Commercial Grade | White
| SKU(s) | TR1107W |
| UPC | 032664666445 |
| Color | White |
| Voltage | 125V |
| Width | 0.69 in |
| Length | 1.3 in |
| Height | 3.81 in |
| Wire | #14-10 AWG |
| Certs |
|
 View Spec Sheet
|
The Eaton TR1107W Tamper-Resistant Decorator Duplex Receptacle is engineered for performance, safety, and modern aesthetics—ideal for both residential and light commercial environments. This 15-amp, 125-volt duplex outlet is designed to meet NEC® tamper-resistance requirements, featuring internal shutters that prevent the insertion of foreign objects, enhancing child safety and code compliance.
Constructed with an impact-resistant thermoplastic face and a durable PVC body, this device ensures long-term durability, even in high-traffic or heavy-use areas. It supports both side and push-in wiring, with screw terminals for secure connections. Compatible with #14–10 AWG copper or copper-clad aluminum conductors, it is versatile enough for various wiring methods and junction box installations.
The decorator-style faceplate offers a sleek, contemporary look that blends seamlessly with modern wallplates and interior aesthetics. Backed by cULus and NOM certifications, the TR1107W is built to meet strict safety and quality standards.
Catalog Number: TR1107W
UPC: 032664666445
Device Type: Decorator Duplex Receptacle
Amperage Rating: 15A
Voltage Rating: 125V
NEMA Configuration: 5-15R
Poles: Two-pole
Wires: 3-wire
Wiring Method: Side and push-in
Connection Type: Screw terminals
Allowable Wire Size: #14–10 AWG (Copper or Copper Clad Aluminum Only)
Contact Material: Brass
Face Material: Impact-Resistant Thermoplastic
Body Material: PVC
Mounting Type: Flush
Style Type: Decorator
Design: Straight Blade
Color: White
Packaging Type: Core Pack
Certifications: cULus Listed, NOM Certified
Compliance: Tamper-Resistant (TR), NEC®, RoHS Compliant
Torque Rating: 14 lbf-in
Dimensions:
Height: 3.81 in
Width: 0.69 in
Depth: 1.3 in
Weight: 0.142 lb
