SKU(s) | 1303-7W |
UPC | 032664750908 |
Color | White |
Width | 0.88 in |
Length | 1.31 in |
Height | 3.28 in |
Wire | #14-10 AWG |
![]() |

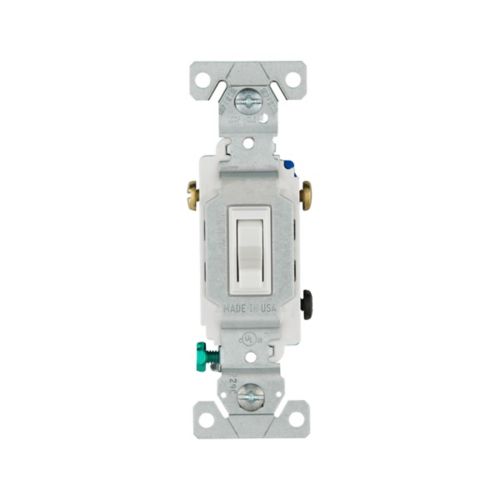

The Eaton 1303-7W Toggle Switch is a reliable and versatile wiring solution for residential lighting and fan control applications. Designed to handle multiple load types—including LEDs, motors, halogen, incandescent, fluorescent (FLR), CFL, ELV, MLV, and fans—this switch supports both single-pole and three-way configurations, making it a perfect fit for modern multi-location switching needs.
Constructed from durable polycarbonate, the 1303-7W offers superior resistance to wear and heat. It supports #14–10 AWG copper or copper-clad aluminum wire, and its versatile wiring options include back, side, and push wire terminals for fast and secure installation. The switch's flush mount design in a sleek white finish blends seamlessly with decorator plates and interior walls.
Technical Specifications:
Catalog Number: 1303-7W
Product Type: Toggle Switch
Switch Type: 3-Way (Also supports single-pole)
Amperage Rating: 15A
Voltage Rating: 120V
Number of Poles: Single-Pole, Three-Way
Load Compatibility: Motor Control, LED, Incandescent, ELV, MLV, CFL, Fluorescent (FLR), Halogen, Fan
Wiring Method: Back wire, Side wire, Push wire
Connector Type: Screw
Mounting Method: Flush
Material: Polycarbonate
Allowable Wire Size: #14–10 AWG
Torque Rating: 14 lbf-in
Color: White
Certifications: cULus Listed, NOM
Compliances: RoHS Compliant, NAFTA
Dimensions: 3.28" H × 0.88" W × 1.31" D
Weight: 0.14 lb
Whether used in single or multi-way configurations, this high-performance switch provides long-lasting durability and smooth toggle operation for a wide range of lighting and motor control needs.
$5.50 /each
SKU(s) | 7504W-BOX |
UPC | 032664643835 |
Color | White |
Voltage | 125V |
Width | 0.97 in |
Length | 1.44 in |
Height | 4.19 in |
Wire | #14-10 AWG |
Certs |
![]() |
![]() |
$3.15 /each
SKU(s) | PJ263W |
UPC | 032664751400 |
Color | White |
Width | 6.75 Inch |
Length | 0.08 Inch |
Height | 4.87 Inch |
Certs |
![]() |
![]() |
$6.65 /each
SKU(s) | PJS263W |
UPC | 032664617072 |
Color | White |
Width | 6.75 Inch |
Length | 0.08 Inch |
Height | 4.87 Inch |
Certs |
![]() |
![]() |
$38.95 /each
SKU(s) | 93406-BOX |
UPC | 032664538483 |
Color | Stainless steel |
Width | 11.81 in |
Length | 0.032 in |
Height | 4.5 in |
Certs |
![]() ![]() |
![]() |
