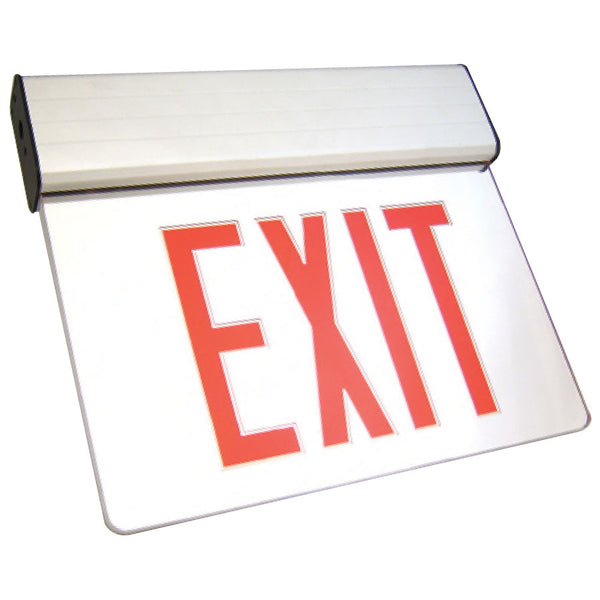

Aluminum Edge Lit LED Exit Sign w Battery Back-up
SKU(s) | ELXTEU1G-W-A-EM | ELXTEU1R-W-A-EM |
Letter ... | Green | Red |
Width | 1 3/4" |
Length | 13 3/4" |
Height | 11 7/8" |
Illumination
- Ultra-bright, energy efficient, long-lasting Red or Green LED.
- UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
- White mylar background panel.
Electrical
- Dual 120/277 voltage standard. Optional multi-tap 208/220/240V available.
- Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V long life maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Mounting
- Aluminum mounting canopy included for top, end or back mount.
Housing
- Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
- Self-adhesive chevron appliques and guide template provided for directional indication.
Options
- Custom: Signs available with requested "special" wording.
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
- 2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting a a back-up to the other) supplies at the same time.
- SPV: UL Listed for special voltage option
Warranty / Listing
- Five year warranty on all electronics and housing. Battery is pro-rated for five years.
- UL listed for damp locations. (0&edg;C - 50°C / 32°F - 122°F standard)
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
