Aluminum Half-Moon Boxed Step Light | 12V SCB | Multiple Finishes
| SKU(s) | CL-362-BK |
| Color | Black | Rust | White | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze, Rust & White |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-3/4" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Aluminum Half-Moon Boxed Step Light is an architectural-grade outdoor lighting fixture designed for safety, durability, and style. With a classic half-moon faceplate, this step light provides soft, glare-free illumination for stairs, pathways, and masonry surfaces, enhancing both residential and commercial outdoor spaces.
Constructed with a durable aluminum faceplate and a white powder-coated steel recessed mount box, the fixture ensures long-term performance in tough outdoor environments. Available in Black, Bronze, Rust, and White finishes, it complements a wide range of exterior designs.
The high-impact white polycarbonate lens is securely sealed to the faceplate, diffusing light while protecting the lamp. A top-grade fixed S.C. Bayonet socket supports 12V SCB lamps up to 27W max (lamp not included), with the option to use energy-efficient LED alternatives.
For ease of installation, the step light comes prewired with a 12-inch direct burial cord. Optional CX-839 universal connectors or CX-854 silicone-filled wire nuts are available separately for secure wiring. The recessed back box with three ½" NPT inlets allows versatile conduit entry, making it ideal for installation in concrete, brick, or other masonry surfaces.
Operating within a 9–17V range with LED lamps, the fixture requires a remote 12V transformer (sold separately). Backed by a 5-year warranty on housing, this step light is a reliable, stylish, and long-lasting choice for architectural outdoor lighting.
Key Features:
Half-moon aluminum step light for architectural outdoor use
Available finishes: Black, Bronze, Rust, White
High-impact polycarbonate lens for durability and light diffusion
Top-grade S.C. Bayonet socket – supports 12V SCB lamps (27W max, not included)
Prewired with 12-inch direct burial cord for easy installation
Recessed mount back box with 3x ½" NPT inlets
Ideal for concrete, brick, and masonry applications
Operates in a 9–17V range with LED lamps
Requires remote 12V magnetic transformer (sold separately)
5-year warranty on housing against manufacturer defects
$203.45 /each

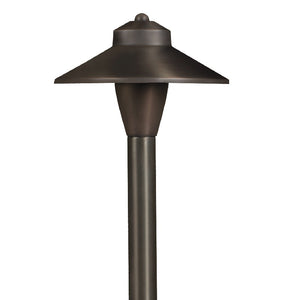

| SKU(s) | CL-653-BT-AB-12 |
| Color | Antique Bronze | Gun Metal |
| Size | 12" | 18" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6" |
| Length | 6" |
| Height | 16-5/8" / 22-5/8" |
| Diameter | 6" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$261.00 /each
| SKU(s) | CL-410-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 4.5/8" |
| Length | 4-5/8" |
| Height | 2-1/2" |
| Diameter | 4-5/8" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$198.00 /each

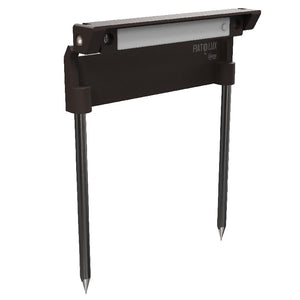

| SKU(s) | CL-750-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 9.5" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$126.00 /each
| SKU(s) | CL-370B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8-1/4" |
| Height | 3-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
