150° Line Voltage Dual-Technology Occupancy Wall Mount Sensor, Single Pole

$156.10 Regular price $169.99

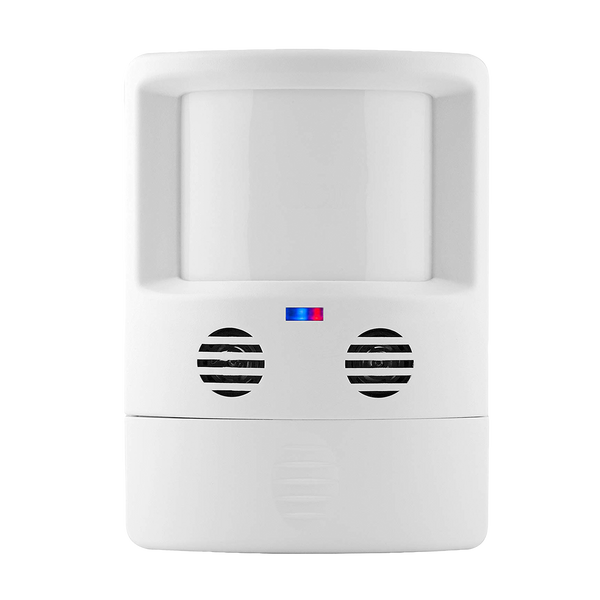

Enerlites Logo 150° Line Voltage Dual-Technology Occupancy Wall Mount Sensor, Single Pole

View Spec Sheet

The MDW-V is a dual-technology wall mounted motion sensor that operates lights using a combination of passive infrared (PIR) and ultrasonic technologies. The motion sensor features a 150° field of view to provide up to 1000 sq.ft. of PIR coverage area and 800-1200 sq.ft. of ultrasonic coverage area. The sensor operates lights based on the occupancy and ambient light levels detected in the area. The sensor turns lights ON automatically when motion is detected, and turn OFF after no motion has been detected for the pre-selected time delay. The motion sensor's time delay can easily be adjusted from 15 seconds to 30 minutes. A "walk-through" mode can turn lights off after only 3 minutes, if no activity is detected after 30 seconds following an occupancy detection. This sensor also contains a light level sensor. If adequate daylight is present, the sensor holds the load OFF until light levels drop, even if the area is occupied. The light level and motion sensor sensitivity are also easily adjustable. The device includes a manual ON/OFF button. This switch is for single pole use only.

  • Combines Passive Infrared (PIR) and Ultrasonic Technology
  • PIR Coverage: 150° up to 1000 sq. ft.
  • Ultrasonic Coverage: 150° up to 1200 sq. ft.
  • Different technologies can be used independently or in conjunction
  • Adjustable swivel neck rotates 80 degrees vertically and 60 degrees horizontally
  • Adjustable time delay: 5 sec to 30 min
  • Input voltage: 120/277VAC, 50/60 Hz
  • Maximum load: 10 Amps
  • LED: 150W
  • Operation Temperature: 32°F to 131°F (0°C to 55°C)
  • Walk-through mode: 3 minutes if no activity after 30 sec
  • Turn lighting systems ON or OFF based on ambient light levels
  • Two-year limited warranty
  • UL & CUL Listed
  • Title 24 Compliant

    SKU: MDW-V-W
    UPC: 883951418397
    Category: Enerlites, Sensors
