Highbay Sensor, White
Highbay Sensor, White Highbay Sensor, White

Enerlites Logo Highbay Sensor, White

$37.80 / ea

SKU(s) MPC-50H-W
UPC 883951413996
View Specification Sheet View Spec Sheet
SKU: MPC-50H-W
UPC: 883951413996
Category: Enerlites, Sensors
Shipping/Return Policy

Product Description

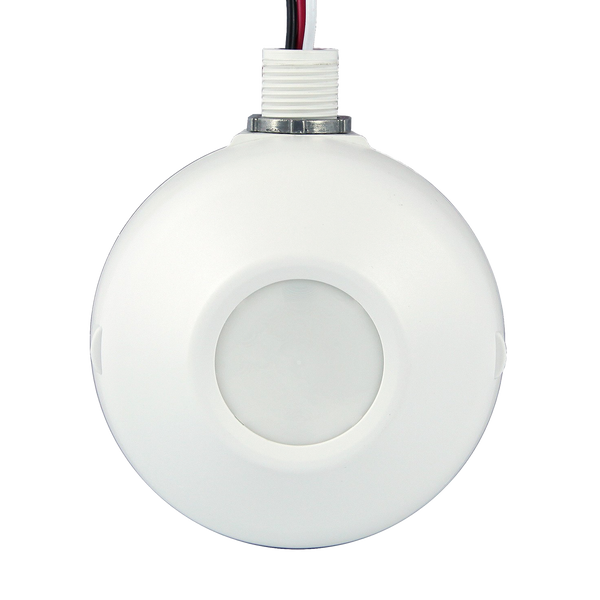

The MPC-50H is a commercial grade line voltage high bay ceiling sensor that operates lights using passive infrared (PIR) technology. This unit is specifically designed for high bay and fixture mounted applications and it features interchangeable 360° fresnel lenses that provide up to 1200-2800 sq.ft of coverage area for ceiling heights from 8-50ft. This ceiling mounted sensor operates lights ON/OFF based on occupancy and ambient light levels detected in the area. The occupancy sensor turns lights ON when motion is detected and OFF when no motion is detected for a pre-selected time delay. Ambient light level detection prevents the occupancy sensor from turning lights ON when the ambient light levels are sufficient. Both the time delay and light level settings can be easily adjusted. This ceiling sensor is compatible with LED, fluorescent, or high bay lights. This ceiling mount motion sensor is ideal for use in warehouses, large storages and other high ceiling and fixture applications.



  • Passive Infrared Technology (PIR)
  • Comes with 2 Lenses: 1 extended range lens for high bay, 1 for low mounting height
  • Lens 1: MPC-50HD-L1: Mounting height: 50ft Field of view: 360° Coverage :2800 sq.ft
  • Lens 2: MPC-50HD-L2: Mounting height: 8ft Field of view: 360° Coverage :1200 sq.ft
  • Adjustable time delay: 15 sec to 30 min
  • Sensitivity adjustment: 50% or 100%
  • Input voltage: 120/277 VAC, 50/60 Hz
  • Motor: 1/4 HP, 120VAC, 60 Hz
  • Incandescent/Tungsten: 800W @ 120VAC, 50/60 Hz
  • Fluorescent/Ballast: 800VA @ 120VAC / 1200VA @ 277VAC. 50/60 Hz
  • Operation Temperature: 32°F to 131°F (0°C to 55°C)
  • Two-year limited warranty
  • UL & CUL Listed
  • Title 24 Compliant
  •
