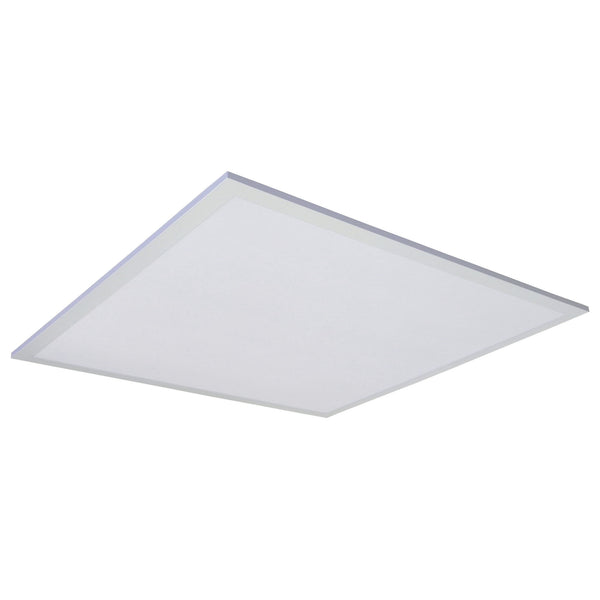

LED Flat Panel - 2x2 - 32W - 4,480 Lm
Wattage | 32 Watt |
Voltage | 120 - 277V AC |
Lumens | 4111 |
Color temperature | 5000K |
Lumens Per Watt | 128 lm/W |
Width | 23.7" |
Length | 23.7" |
Height | 2" |
LED Life | 80,000 hours |
The premium-performance, ultra-thin, edge-lit LED panel (LEDPNL) series offers industry-leading lumens per watt (LPW), and is DLC Premium listed. The LEDPNL is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.
▪ Available in 3000k (warm white), 3500k (warm/neutral white)
4000k (neutral white) & 5000k (cool white) color
temperatures.*
▪ Long-life LEDs provide 56,000 hours of operation with at
least 70% of initial lumen output (L70).**
▪ Provides 4,078 luminaire lumens (102 lumens per watt, LPW)
at 3000k, 4,134 luminaire lumens (103 LPW) at both 3500k
and 4000k, and 4,480 luminaire lumens (112 LPW) at 5000k.*
▪ Uniform illumination with no visible LED pixilation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming capability is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Aluminum housing.
▪ Acrylic lens with light guide panels for optimal light
distribution and efficiency.
▪ Easy installation in new construction or retrofit.
▪ Standard earthquake clips provide secure installation in grid
ceilings.
▪ Standard mounting options include recessed mounting in
grid ceilings, or suspended mounting using attached hanging
brackets. For mounting in plaster or other hard ceiling, see
Mounting Kits.
