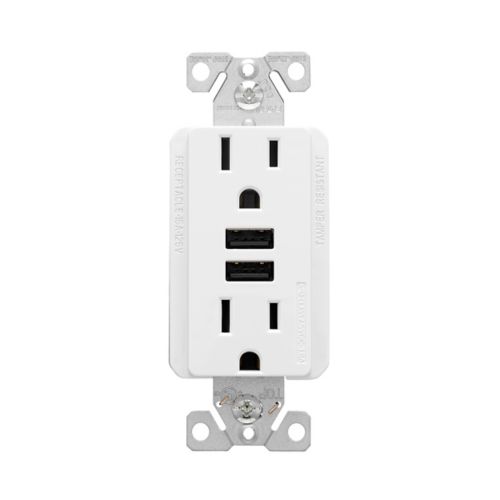

15 Amp USB Charger Duplex Receptacle | 125V Tamper-Resistant Outlet | White
| SKU(s) | TR7765W-BOX |
| UPC | 032664767029 |
| Color | White |
| Width | 1.3 in |
| Length | 1.4 in |
| Height | 4.19 in |
| Wire | #14-10 AWG |
 View Spec Sheet
|
Power up with versatility using the Eaton TR7765W-BOX Combination USB Charger with Duplex Receptacle, designed to meet modern residential and commercial electrical needs. This tamper-resistant receptacle combines a standard 15A, 125V duplex outlet with dual Type A USB charging ports delivering a total of 3.6A, allowing simultaneous charging of multiple devices while preserving outlet access.
Engineered with thermoplastic construction, brass contacts, and a flush mount design, the TR7765W is both durable and space-efficient. Ideal for homes, offices, and hospitality environments, it features a decorator style face, screw terminal wiring, and supports #12–14 AWG conductors. It fits standard wall boxes and is cULus Listed for safety and performance.
Technical Specifications:
Catalog Number: TR7765W-BOX
Product Type: Combination USB Charger & Duplex Receptacle
Receptacle Type: Two-pole, three-wire, grounding
USB Type: Type A (Dual Ports)
USB Output: 3.6A total
Amperage Rating: 15A
Voltage Rating: 125V
Wiring Method: Screw Terminals
Allowable Wire Size: #12–14 AWG
NEMA Configuration: 5-15R
Mounting Method: Flush
Contact Material: Brass
Material: Thermoplastic
Face Style: Decorator
Color: White
Certifications: cULus Listed
Packaging Type: Retail Box
Torque Rating: 14 lbf-in
Tamper Resistant: Yes
Dimensions: 4.19" H x 1.3" W x 1.4" D
Weight: 0.793 lb
$53.95 /each
