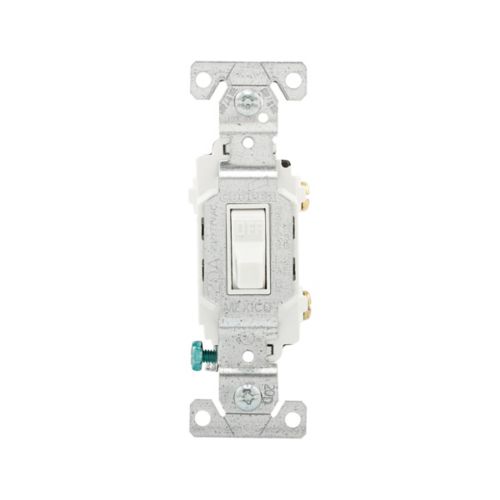

20 Amp Single-Pole Toggle Switch | 120/277V | White | Back & Side Wired

The Eaton CSB120W Commercial Grade Toggle Switch is a high-quality single-pole switch built for demanding commercial applications. With a 20-amp, 120/277V rating, this switch is designed to handle a wide range of lighting loads including LED, CFL, incandescent, fluorescent, halogen, and motor loads. It is ideal for schools, office buildings, retail environments, and other heavy-use areas.

Featuring brass terminals and a PVC body, the CSB120W offers reliable conductivity and rugged construction. The back and side wiring options provide flexibility during installation, while the screw-type connectors ensure secure electrical contact. This switch supports wire sizes from #14–10 AWG and is compliant with cULus, NOM, and Federal Specification 6241 05 standards.

Technical Specifications:

• Catalog Number: CSB120W

• Type: Toggle Switch

• Switch Type: Single-Pole

• Amperage Rating: 20A

• Voltage Rating: 120/277V

• Poles: Single-Pole

• Application: Commercial

• Load Types: LED, CFL, Incandescent, ELV, MLV, Fluorescent, Halogen, Motor Control, Fan

• Wiring Method: Back and Side

• Connector Type: Screw Terminals

• Allowable Wire Size: #14–10 AWG

• Torque Rating: 14 lbf-in

• Terminal Material: Brass

• Body Material: PVC

• Mounting Type: Flush

• Color: White

• Certifications: cULus Listed, NOM

• Compliances: Federal Specification Classification 6241 05

• Dimensions: 4.2" H × 0.902" W × 1.3" D

• Weight: 0.2 lb
