15 Amp Single-Pole 4-Way Toggle Switch | 120V | White | Back & Side Wired
| SKU(s) | 1242-7W-BOX |
| UPC | 032664750168 |
| Color | White |
| Width | 0.88 in |
| Length | 1.31 in |
| Height | 3.28 in |
| Wire | #14-10 AWG |
 View Spec Sheet
|
The Eaton 1242-7W-BOX Toggle Switch is a durable, high-performance 4-way switch designed for residential lighting control across three or more switch locations. Rated at 15 amps and 120 volts, this switch supports versatile multi-way circuit configurations and is perfect for hallways, stairwells, and large rooms with multiple switch points.
Built with a polycarbonate body for added impact resistance and long-term reliability, the switch features side and push-in wiring terminals, allowing for fast, flexible installation. The grounding connection ensures safe operation and compliance with electrical codes. Its sleek white finish integrates seamlessly into any wallplate or interior design.
Technical Specifications:
Catalog Number: 1242-7W-BOX
Switch Type: 4-Way Toggle
Amperage Rating: 15A
Voltage Rating: 120V
Number of Poles: Two-pole
Wiring Method: Side and Push-In
Mounting Method: Wall
Connector Type: Grounding
Allowable Wire Size: #14–10 AWG
Material: High-impact Polycarbonate
Torque Rating: 14 lbf-in
Color: White
Application: Residential
Certifications: cULus Listed
Compliances: NAFTA
Dimensions: 3.28" H × 0.88" W × 1.31" D
Weight: 0.001 lb
$6.65 /each
| SKU(s) | PJS263W |
| UPC | 032664617072 |
| Color | White |
| Width | 6.75 Inch |
| Length | 0.08 Inch |
| Height | 4.87 Inch |
| Certs |
|
|
View Spec Sheet
|
$24.50 /each
| SKU(s) | DUL06P-C2 |
| UPC | 032664760723 |
| Color | Stainless steel |
| Voltage | 120V |
| Width | 2.1 in |
| Length | 2.783 in |
| Height | 4.36 in |
| Certs |
|
|
View Spec Sheet
|
$19.50 /each

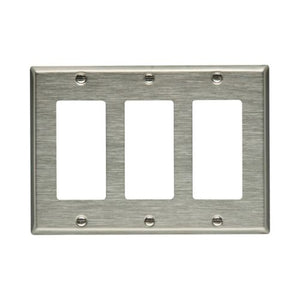

| SKU(s) | 93403-BOX |
| UPC | 032664538285 |
| Color | Stainless steel |
| Width | 6.37 in |
| Length | 0.032 in |
| Height | 4.5 in |
| Certs |
|
|
View Spec Sheet
|
$4.50 /each
| SKU(s) | 6352W-BU |
| UPC | 032664584084 |
| Color | White |
| Voltage | 125V |
| Width | 0.84 in |
| Length | 1.32 in |
| Height | 4.19 in |
| Wire | #14-10 AWG |
| Certs |
|
|
View Spec Sheet
|
