| SKU(s) | LEDDR-24V-384W-UNIV |
| Wattage | Output: 384W |
| Voltage | Output: 24V / Input: 120-277V |
| Efficacy | 85% |
| Width | 11.38" |
| Length | 1.81" |
| Height | 5.19" |
| Certs |
|
 View Spec Sheet
|

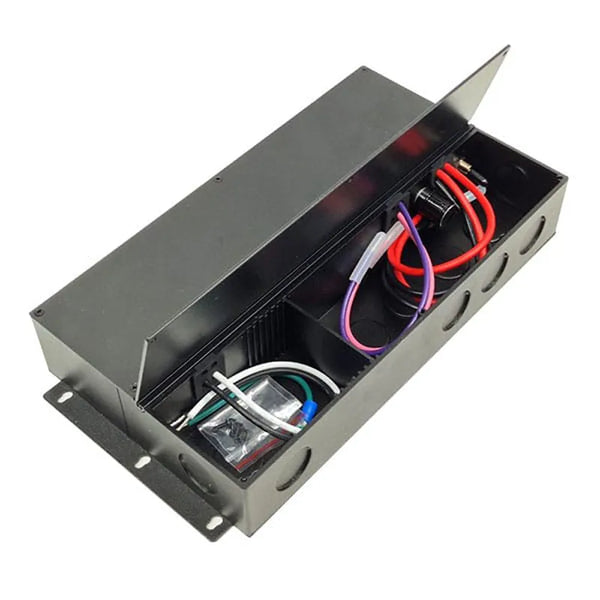

384W LED Driver 5-in-1 Dimmable with Junction Box | Ribbon Lighting Series – High-Performance Multi-Channel Power for Demanding LED Systems
Take your large-scale LED lighting projects to the next level with the 384W 5-in-1 Dimmable LED Driver with Junction Box, part of the cutting-edge Ribbon Lighting Series. Designed for robust performance and maximum dimming flexibility, this powerful driver delivers 384 watts of output across four 4A channels (4x4A), making it ideal for complex lighting layouts that demand precision, efficiency, and reliability.
Equipped with 5-in-1 dimming technology, this LED driver supports Triac, ELV, 0-10V, 1-10V, and PWM protocols—ensuring seamless integration with virtually any residential, commercial, or architectural lighting control system. Its constant 24V DC output voltage, tight ±0.5V regulation, and ≤600mV ripple & noise ensure stable performance for LED strip lights, cove lighting, linear fixtures, and more.
Built for endurance and safety, the driver includes short-circuit and over-voltage protection, automatic recovery, and a rugged junction box enclosure for secure and code-compliant installation. With a high efficiency rating of 85% at 220V AC, and a power factor of 0.95, it is engineered to minimize energy loss and ensure long-term reliability.
Designed to withstand extreme environmental conditions, it operates in temperatures from -22°F to 140°F, is vibration-resistant, and is certified for dry, damp, and wet location installations.
Input Voltage: 100V – 277V AC
Output Voltage: 24V DC ± 0.5V
Max Output Power: 384W (4x4A Channels)
Output Ripple & Noise: ≤600mV
Power Efficiency: 85% @ 220V AC
Power Factor: 0.95
Input Frequency: 50–60Hz
Input Current: 3.2A @ 110V AC
Surge Current (Cold Start): 20A @ 120V / 25A @ 277V
Leakage Current: <0.75mA
Short-Circuit Protection: Hiccup Mode with Automatic Recovery
Over-Voltage Protection: Auto Shutdown ≥28V with Auto Recovery
Thermal Tolerance: Case temperature up to 194°F
Vibration Resistant: 10–500Hz, 1.0mm, 15 min (X, Y, Z axes)
Humidity Rating: 20–90% RH (operation) / 10–95% RH (storage)
Operating Temperature: -22°F to 140°F
Storage Temperature: -40°F to 176°F
High-capacity LED strip and linear lighting systems
Multi-zone cove and architectural lighting designs
Commercial lighting retrofits
Outdoor signage and façade illumination
Wet, damp, and dry environments
$101.50 /each
| SKU(s) | ULR-IP54-16F-HO-27K |
| Light c... | 2700k Soft White | 3000k Warm White | 3500k Neutral White | 4100k Cool White | 5000k Super White |
| Wattage | 4.4W per ft. |
| Voltage | 24V DC |
| Lumens | 310~350LM per ft |
| Color Temp | 2700K, 3000K, 3500K, 4000K, 5000K |
| Efficacy | 75~79LM/W per ft. |
| CRI | 90 |
| Length | 16.4FT |
| Certs |
|
|
View Spec Sheet
|
$61.50 /each

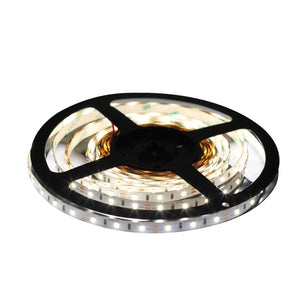

| SKU(s) | ULR-IN-16F-HO-27K |
| Light c... | 2700k Soft White | 3000k Warm White | 4100k Cool White | 5000k Super White | 3500k Neutral White |
| Wattage | 4.4W per ft |
| Voltage | 24V DC |
| Lumens | 75~79LM/W per ft |
| Color Temp | 27K, 30K, 35K, 40K, 50K |
| Certs |
|
|
View Spec Sheet
|
$41.50 /each
| SKU(s) | G-96321 |
| UPC | 024431963215 |
| Color | Silver | Black | White |
| Width | .33" |
| Length | .96" |
| Height | 12mm |
|
View Spec Sheet
|
$800.50 /each
| SKU(s) | G-48490 |
| UPC | 696304484907 |
| Light c... | 2700k Soft White | 3000k Warm White | 3500k Neutral White | 4100k Cool White | 5000k Super White |
| Color | White |
| Wattage | 5.5 FT / 18W M |
| Voltage | 24V DC |
| Lumens | 548FT/ 1800 M |
| Color Temp | 27, 30, 35, 41, 50K |
| Efficacy | 75 |
| Width | 10 mm |
| Height | 1.8 mm |
| Diameter | 8.65" |
| LED Life | 50.000 Hours |
| Certs |
|
|
View Spec Sheet
|
1/2 Inch Channel Aluminum Surface Mount | Tape Light Channels & Accessories Series | 8ft
