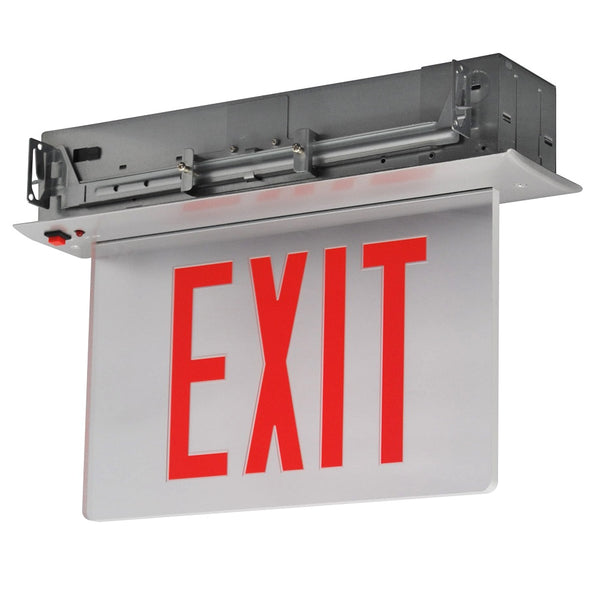

Recessed Edge-Lit LED Exit Sign | Single & Double Face | Red & Green Letters

Ensure safe and compliant emergency egress with this premium Recessed Edge-Lit LED Exit Sign. Designed with a sleek aluminum housing, this single-face exit sign features vibrant red LED lettering and a modern edge-lit design that provides high visibility while maintaining an attractive, low-profile appearance. Perfect for upscale commercial and institutional interiors, it is UL 924 listed, energy-efficient, and easy to install in recessed ceilings or walls. Ideal for offices, retail spaces, hotels, and more.

Key Features:

• Illumination: Ultra-bright, energy-efficient, long-life Red or Green LED.

• Panel: UV-stabilized, ultra-clear acrylic edgelit panel ensures consistent, uniform illumination.

• Double Face Option: Factory-installed silver or white mylar background panel.

• Directional Indicators: Self-adhesive Chevron appliques and guide template included.

Electrical:

• Dual 120V/277V voltage standard.

• Charge rate/power “ON” LED indicator and push-to-test switch for mandated code compliance testing.

• Internal solid-state transfer switch automatically connects the internal battery to LED board during power outage.

• Fully automatic, solid-state, two-rate charger recharges discharged battery in 24 hours.

Battery (EM models only):

• 4.8V long-life, maintenance-free, rechargeable NiCd battery.

• Provides minimum 90 minutes of emergency illumination.

Mounting:

• Compatible with drywall or drop ceiling recessed installations.

• Includes bar hangers for secure mounting.

• Optional wall mount capability.

Construction:

• Premium-grade extruded aluminum housing.

• Extruded aluminum trim assembly is detachable from below for easy service or maintenance.

• Available in standard aluminum, optional black, or white powder-coated finishes.

Compliance & Warranty:

• UL Listed for safety.

• Meets NFPA 101 Life Safety Code, NEC, OSHA, and state/local codes.

• Five-year warranty on electronics and housing.

• Batteries pro-rated for 5 years.
