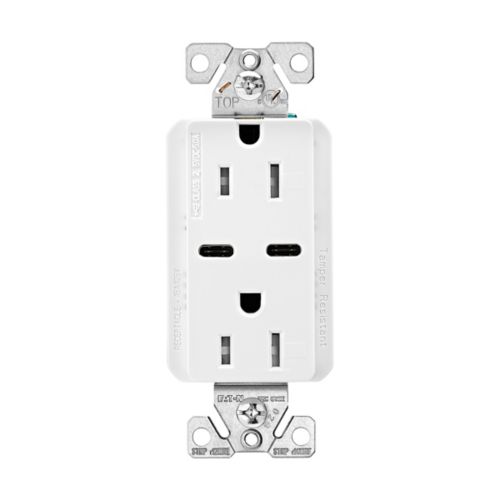

15 Amp Tamper Resistant Decorator Receptacle with Dual USB Type-C 5Amp Charger Receptacles | 125V | White
| SKU(s) | TRUSBC15W-BOX |
| UPC | 032664753305 |
| Color | White |
| Width | 1.3 in |
| Length | 1.4 in |
| Height | 4.19 in |
| Wire | #14-10 AWG |
 View Spec Sheet
|
The Eaton TRUSBC15W-BOX Combination USB Type-C Charger with Duplex Receptacle brings modern power and convenience into any residential or commercial space. This compact unit features a USB Type-C charging port and a standard 15A, 125V duplex receptacle in a single device, allowing simultaneous device charging and power access.
With a 5A USB output, this receptacle is ideal for quickly charging modern smartphones, tablets, and other USB-C compatible devices. The tamper-resistant design enhances safety, while its flush decorator-style face in a white thermoplastic finish complements contemporary interiors. The unit is built with brass contacts, supports #12–14 AWG wire sizes, and is compatible with both flush and surface mounting.
Technical Specifications:
Catalog Number: TRUSBC15W-BOX
Product Type: USB Type-C Charger & Duplex Receptacle
USB Port Type: Type-C
USB Charging Output: 5A
Amperage Rating: 15A
Voltage Rating: 125V
NEMA Configuration: 5-15R
Contact Material: Brass
Wiring Method: Screw Terminals
Allowable Wire Size: #12–14 AWG
Poles: Two-pole, three-wire grounding
Mounting Method: Flush or Surface
Material: Thermoplastic
Face Style: Decorator
Color Options: White, Almond, Light Almond
Tamper Resistant: Yes
Torque Rating: 14 lbf-in
Dimensions: 4.19" H × 1.3" W × 1.4" D
Weight: 0.285 lb
Certifications: cULus Listed, NOM
Packaging Type: Retail Box
Perfect for upgrading outlets in kitchens, bedrooms, offices, and hospitality settings with fast and efficient USB Type-C charging built in.
$69.95 /each
