Commercial LED Round High Bay | Motion Sensor | 20,000 Lm
Commercial LED Round High Bay | Motion Sensor | 20,000 Lm

Commercial LED Round High Bay | Motion Sensor | 20,000 Lm

$170.98 / ea

SKU(s) HBR-20L-5K-ODS
UPC 655746011904
Color T... 5000K | 4000K
Wattage 150 Watts
Voltage 120-277V
Lumens 20,000 Lm
Efficacy 140 Lm / W
CRI > 80 CRI
Height 6.6"
Diameter 11.8"
LED Life 174,000 Hours
View Specification Sheet View Spec Sheet
SKU: HBR-20L-5K-ODS
UPC: 655746011904
Category: Round High Bays
Shipping/Return Policy

Product Description

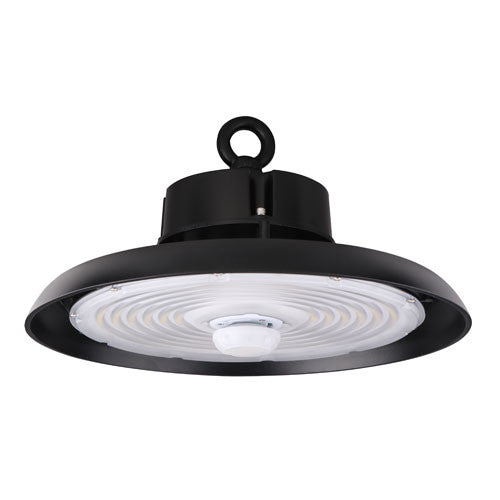

The HBR is a premium round LED high bay luminaire. It is designed to illuminate a wide variety of settings including commercial, industrial and retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and clear glass lens, the HBR provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

  • cULus listed for wet locations in ambient temperatures from
  • - 30°C to 50°C (-22°F to 122°F).
  • DLC premium approved.
  • Input transient surge protection (4kV).
  • Complies with FCC Part 15, class A.
  • IP65 rated for ingress protection.
  • 5-year warranty of all electronics and housing.
  • Suspension from pre-installed mounting eyebolt with locking set screw is standard.
  • Ceiling-mounted installation (using optional yoke mounting bracket, provides up to 180° of adjustability.
  • Two ways to mount luminaire to electrical conduit:
  • Attach conduit (½” NPS) to optional yoke mounting bracket.
  • Optional pendant snap hook.
  • Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
  • Long-life LEDs provide at least 174,000 hours of operation with at least 70% of initial lumen output (L70).**
  • LED chromaticity based on < 6-step ANSI quadrangles.
  • LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 of operation.
  • Provides a range of 14,000 to 34,000 nominal lumens and draws 100- 240 nominal watts.*
  • Universal 120-277 AC voltage (50-60Hz) and 6-foot incoming AC power cords are standard. Universal 277-480 AC voltage (5060Hz) is also available.
  • 0-10vdc dimming drivers are standard.
  • Watertight, compression-type electrical connectors.
  • Mounting options include suspension from eyebolt (standard), yoke mounting, snap hook, and attachment to electrical conduit.
    Power factor > 0.90.
  • Total harmonic distortion < 20%.
  • Color rendering index (Ra) > 80. Red color rendering > 5.
  • Die cast aluminum housing, painted black.
  • Polycarbonate lens.
  • Easy installation in new construction or retrofit.
