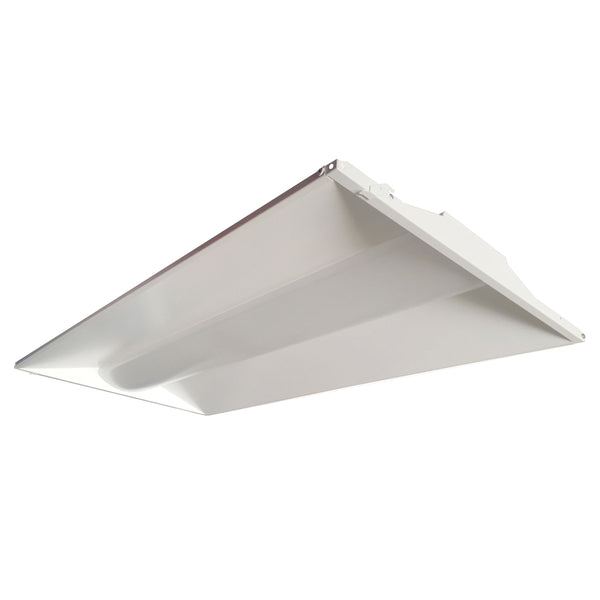

Commercial LED Retrofit 2x4 Troffer | 23W | 3K Lm

SKU(s)	BRKCBLED24-23W-5KMV-PRM-ET \| BRKCBLED24-23W-4KMV-PRM-ET \| BRKCBLED24-23W-35KMV-PRM-ET
Color T...	5000K \| 4000K \| 3500K
Wattage	23 Watt
Voltage	120-277V AC
Lumens	3,000 lm
Color Temp	3500K \| 4000K \| 5000K
Efficacy	133 lm/W
Width	22 1/8"
Length	45 5/8"
Height	3"
LED Life	122,000 hours
Certs

SKU: BRKCBLED24-23W-5KMV-PRM-ET
UPC: 655746012024
Category: Troffer Lighting
Shipping/Return Policy

Product Description

The BRKCBLED24 2x4 retrofit center baskets are designed to transform existing 2x4 fluorescent recessed luminaires into high performance LED luminaires. The BRKCBLED24 2x4 series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

▪ Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*

▪ Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**

▪ BRKCBLED24-23W provides 2,976 luminaire lumens (129 lumens per watt, LPW) at 3500k; 3,036 luminaire lumens

(132 LPW) at 4000k; and 3,059 luminaire lumens (133 LPW) at 5000k.*

▪ BRKCBLED24-42W provides 5,285 luminaire lumens (126 LPW) at 3500k; 5,376 luminaire lumens (128 LPW) at 4000k; and 5,460 luminaire lumens (130 LPW) at 5000k.*

▪ Uniform illumination with no visible LED pixelation.

▪ Universal 120-277 AC voltage (50-60Hz) is standard.

▪ 0-10vdc dimming capability is standard.

▪ Power factor > 0.90.

▪ Total harmonic distortion < 20%.

▪ Color rendering index > 80.

▪ Steel housing and acrylic lens.

▪ Easy installation in existing 2x4 fluorescent recessed housings.
