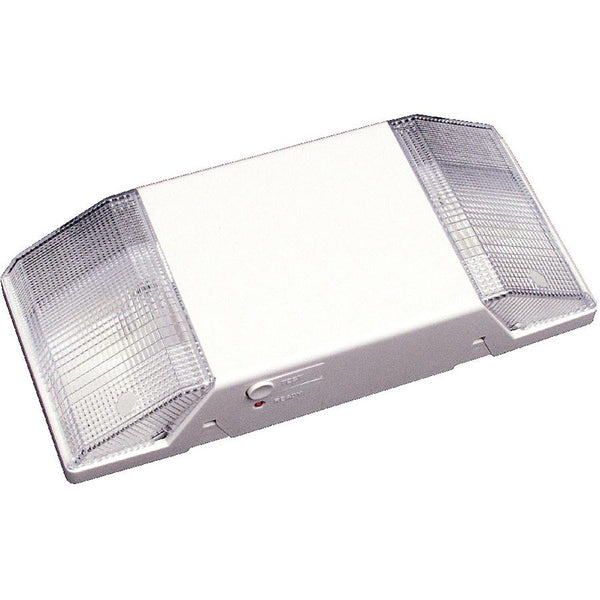

LED Fixed Optics Thermoplastic Emergency Unit

$28.06 Regular price $47.88

Electrical Marketplace Logo LED Fixed Optics Thermoplastic Emergency Unit

SKU(s) FLEDR-2
Width 2 3/8"
Length 11 13/16"
Height 5 1/8"
View Spec Sheet

ILLUMINATION

  • Two fixed optics 5.4 watt, glare-free lamp heads.
  • Smooth thermoplastic reflector and plastic lens for optimal light distribution.

ELECTRICAL

  • Dual 120/277 voltage.
  • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • 6V maintenance-free, rechargeable Sealed lead acid battery.
  • Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
  • LVD (Low voltage disconnect) prevents battery From deep discharge.

MOUNTING

  • Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
  • Suitable for wall or ceiling mount.

HOUSING

  • Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.

WARRANTY/LISTING

  • Five year warranty on all electronics and housing. Battery pro-rated for two years.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • ETL listed for damp locations. (20°C – 50°C)
SKU: FLEDR-2
UPC: 655746011386
Category: Emergency Lighting
