Product Description

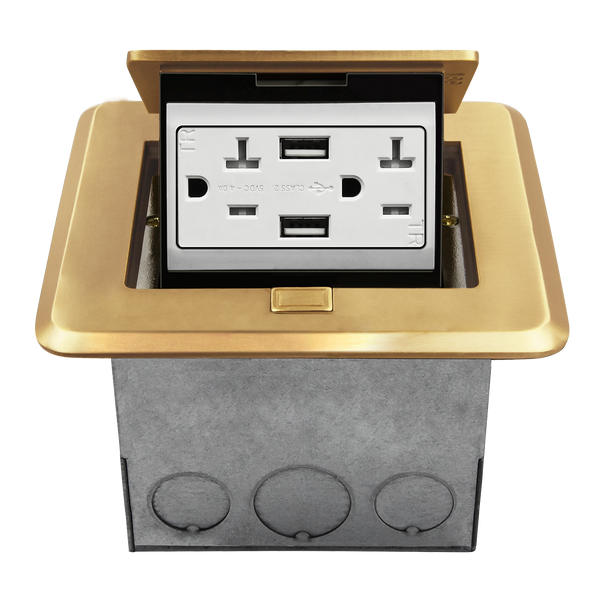

The 961248-C-USB is a 1-gang brass square soft pop-up floor box assembly with a tamper-resistant, USB charging receptacle. The device features duel USB type-A ports for a combined total output of 4.0 Amp. It also features 20A tamper-resistant duplex receptacles, which include internal shutters to prevent the insertion of foreign objects. The floor box easily pops up for easy access to power; simply snap the cover closed when not in use.
Brass soft pop-up floor box assembly
Receptacle rating: 125 VAC, 20 Amp
2 USB Type A output: 5 VDC, 4.0 Amp total
Heavy duty stylish metal cover recesses into the floor when not in use reducing above floor height to 5/16 inch. Press button to access
Terminal block is pre-wired for easy access, just insert the wires and tighten the screws
Flooring types: Tile, stone, wood, laminate, carpet, concrete and vinyl
Tamper-resistant receptacle in compliance with 2017 NEC Article 406.12
Box material: pre-galvanized steel
Knockout size: 1/2" and 3/4"
Metal box installation to sub-floor with adjustable height up to 1" depth
Compliance with 2017 NEC Article 314.27 for floor boxes
Two-year limited warranty
