| SKU(s) | MPALPRO-24L-LKFS-T3 |
| Wattage | Selectable (100 / 150 / 178W) |
| Voltage | 120-277V AC |
| Lumens | Selectable (14K / 21K / 25K Lm) |
| Color Temp | Selectable (3K / 4K / 5K) |
| Efficacy | 129 - 154 Lm / W |
| CRI | > 80 CRI |
| Width | 12" |
| Length | 17" |
| Height | 4" |
| LED Life | 162,000 L70 Hours |
| Certs |
|
 View Spec Sheet
|
▪Field selectable 3000k (warm white), 4000k (neutral white), and 5000k
(cool white) color
▪Long life LEDs provide 162,000 hours of operation with at least 70%
of initial lumen output (L70 ), and 49,000 hours with at least 90% of
initial lumen output (L90)
▪LED chromaticity based on 6 step ANSI quadrangles.
▪LED color maintenance 0.002 chromaticity shift ( Δ u’v’) over the initial 6,000 hours of operation.
▪Provides a range of 14,000 to 40,000 nominal lumens.
▪IES roadway distributions include types III & V.
▪Universal 120 277V (50/60Hz) or 277 480V (50/60Hz) AC voltage with 6 foot incoming power cords.
▪0 10vdc dimming drivers are standard.
▪Watertight, compression type electrical connectors.
▪Power factor > 0.90.
▪Total harmonic distortion < 20%.
▪Color rendering index (R a ) > 80.

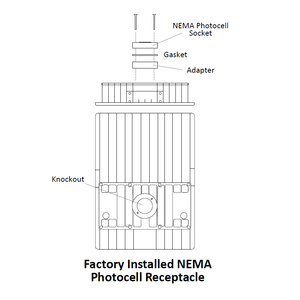

▪Optional NEMA photocell receptacle & photocell.

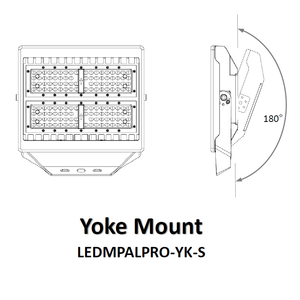

▪Wall mount brackets and tenon adapters available (see page 6).
▪Die cast aluminum housing with dark bronze powder coat finish.
▪Polycarbonate lens.
▪Easy installation in new construction or retrofit.
▪cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
▪DLC premium approved.
▪Rated for 3G vibration.
▪Lenses are rated IK08.
▪Input transient surge protection (6kV).
▪Complies with FCC Part 15, class A.
▪IP65 rated for ingress protection.
▪5 year warranty of all electronics and housing.
$87.00 /each
| SKU(s) | MPAL-KFS |
| Lumen | 2000Lm | 4500Lm | 7000Lm |
| Mounting | Arm (Square Pole) | Arm (Round Pole) | Slip-Fitter | Trunnion | Line Voltage Ground Stake | Yoke (4L & 7L) |
| Wattage | 16W | 30W | 50W |
| Voltage | 120-277V |
| Color Temp | Selectable (35K / 4K / 5K) |
| Efficacy | 125-150 Lm / W |
| CRI | 80+ |
| Width | Varies (See Spec Sheet) |
| Length | Varies (See Spec Sheet) |
| Height | Varies (See Spec Sheet) |
| LED Life | 149,000 L70 |
| Certs |
|
|
View Spec Sheet
|
