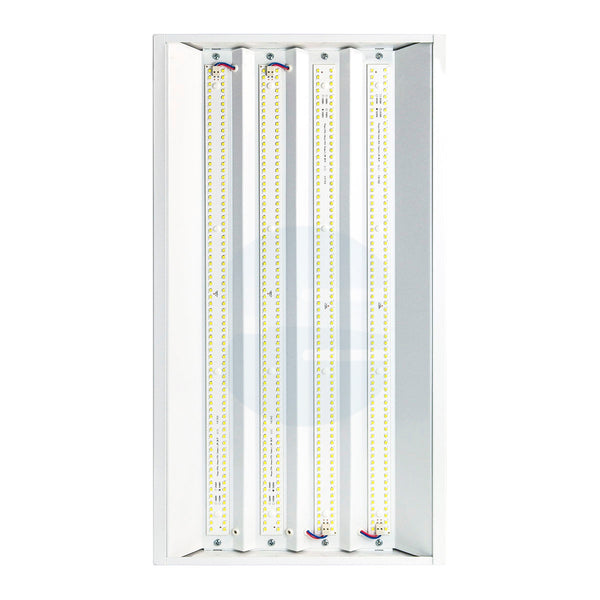

LED Linear High Bay - 320W - 44K Lm

Best Lighting LED Linear High Bay - 320W - 44K Lm

Regular price $269.78 Sale

: In stock

Shipping/Return Policy

The LEDFHB320-V2 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the LEDFHB320 provides high levels of durability and performance. High-efficacy, long- life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

▪ Available in 4000k (neutral white) and 5000k (cool white)
color temperatures.*
▪ Long-life LEDs provide 122,000 hours of operation with at
least 70% of initial lumen output (L70).**
▪ Delivers 44,298 lumens (138 lumens per watt, LPW) at
4000k, and 44,940 lumens (140 LPW) at 5000k.*
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ Step-down transformers are required for 347-480V
applications. Use optional transformer cover box for enclosed
wire connections (see page two for details).
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted steel housing.
▪ Easy installation in new construction or retrofit.
▪ Chain-mount kits (includes v-hooks and 1⁄8” thick, 1-meter
long chain) are standard.
▪ Options include lenses (clear & diffused), wire-guard kits

surface-mounting kits, pendant-mounting kits, and cable-
mounting kits.

Wattage 320W
Voltage 120-277 AC voltage
Lumens 44,298 lm
Color temperature 4000K | 5000K
Lumens Per Watt 137 lm/w
Width 17 1/4"
Length 45 7/8"
Height 3 5/8"
LED Life 122,000 hrs
Specification Sheet
Certifications cULus, DLC, RoHS, FCC, IEE
