Commercial Linear High Bay | 135W | 19K Lumens | Long Life
| SKU(s) | EM-BL-LEDFHB135-5K-MVDIM-V2 |
| Wattage | 135W |
| Voltage | 120-277V AC |
| Lumens | 18,564 lm |
| Color temperature | 4000k | 5000k |
| Lumens Per Watt | 138 lm/w |
| CRI | 80+ CRI |
| Width | 17 1/4" |
| Length | 23 3/4" |
| Height | 3 3/8" |
| LED Life | 122,000 hrs |
| Certifications |
|
| Spec Sheet | View Spec Sheet |

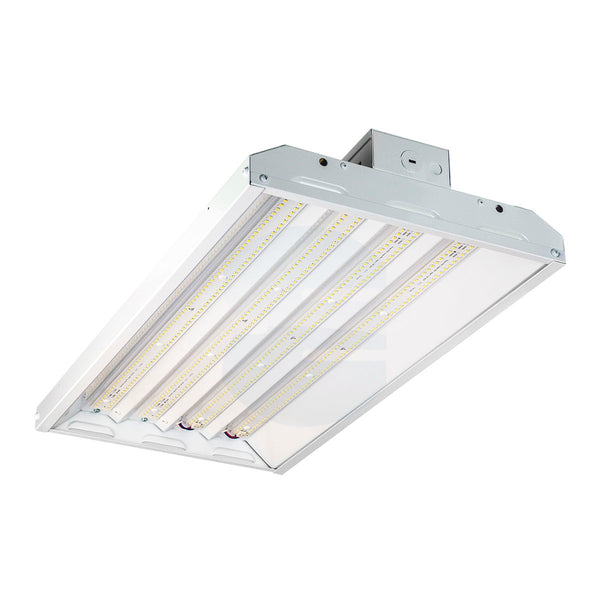

The LEDFHB135 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the LEDFHB135 provides high levels of durability and performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.
▪ 122,000 L70 Hours.▪ Delivers 18,564 lumens (141 LPW).
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion less than 20%.
▪ Color rendering index > 80.
▪ Painted steel housing.
▪ Easy installation in new construction or retrofit.
▪ Chain-mount kits are standard.
