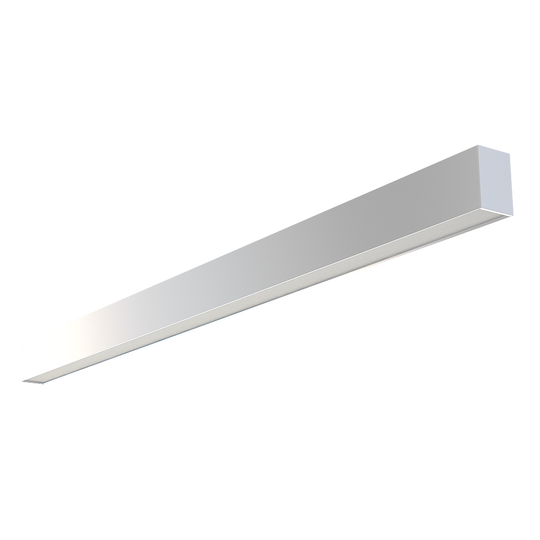

The LR42612 (White) and LR42613 (Black) are premium 6' Architectural Linkable Linear LED fixtures engineered for modern commercial, retail, and architectural environments. Designed with a slim 1.97" profile, these linear luminaires offer a clean, contemporary aesthetic ideal for offices, showrooms, hospitality spaces, educational facilities, and continuous-run lighting layouts.

Each fixture features 3 selectable wattages (36W / 45W / 60W) and 3 selectable color temperatures (3500K / 4000K / 5000K), providing unmatched flexibility during installation. With lumen output ranging from 4140 to 6900 lumens, a wide 120° beam angle, and an efficacy of 115 lm/W, this system delivers powerful, uniform, and energy-efficient illumination.

The up/down selectable lighting enhances architectural appeal by offering simultaneous uplight and downlight distribution, ideal for creating balanced ambient and task lighting in open spaces. Fully compatible with 0–10V dimming, these fixtures operate at 120–277V, feature a long 50,000-hour rated lifetime, and perform reliably in temperatures from -4°F to 113°F.

Constructed for seamless integration, the linkable design enables continuous light rows with no visual interruption. Available in White (LR42612) and Black (LR42613), the series offers color options to complement any interior design style.

KEY TECHNICAL SPECIFICATIONS (BOTH MODELS)

General

• Item Numbers: LR42612 (White), LR42613 (Black)

• Description: ARCHL72/3CCT/3WO/WT/UPDN | ARCHL72/3CCT/3WO/BK/UPDN

• Size: 6 ft

• Shape: Architectural Linear

• Finish: White or Black

• Dimensions: 72.04" (L) × 1.97" (W) × 3.11" (H)

• Maximum Overall Length: 72.04"

Photometric

• CCT Options: 3500K / 4000K / 5000K

• Beam Angle: 120°

• CRI: 80

• Lumen Output: 4140 / 5175 / 6900 lm

• Efficacy: 115 lm/W

• Lighting Distribution: Up/Down selectable

Electrical

• Wattage Selectable: 36W / 45W / 60W

• Input Voltage: 120–277V

• Dimming: 0–10V

• Power Factor: 0.9

• Rated Lifetime: 50,000 hours

• Operating Temperature: –4°F to 113°F

• Estimated Yearly Cost: $7.22

Packaging

LR42612 – White

• UPC: 793888464247

• Master Carton: 10793888464244

• Carton Dimensions: 73.81" × 11.02" × 12.59"

• Case Size: 6

LR42613 – Black

• UPC: 793888464346

• Master Carton: 10793888464343

• Carton Dimensions: 73.81" × 11.02" × 12.59"

• Case Size: 6
