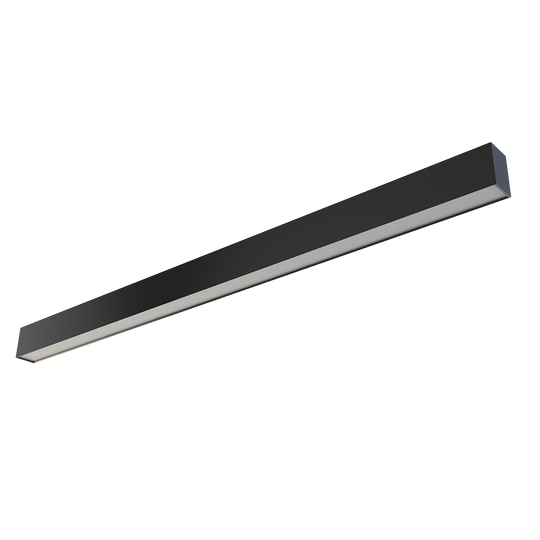

The LR42610 (White) and LR42611 (Black) 4' Architectural Linkable Linear Fixtures are high-performance, premium-grade luminaires designed for modern commercial, office, retail, and hospitality environments. These fixtures offer exceptional flexibility with 3 CCT selectable, 3 wattage selectable, and up/down lighting options, enabling precise customization for any space.

Their sleek 4-foot architectural profile and minimalistic design support continuous run installations, suspended mounting layouts, and clean, contemporary lighting concepts. With selectable wattages—30W, 40W, 50W—and adjustable CCT options (3500K / 4000K / 5000K), lighting designers and installers can tailor illumination to meet performance, mood, and energy-efficiency requirements.

Delivering up to 5750 lumens at 115 lm/W, these luminaires provide powerful, uniform distribution with a wide 120° beam angle. Engineered with long-lasting components and a 50,000-hour rated lifespan, they reduce maintenance costs while supporting modern lighting control systems through 0–10V dimming.

Available in white (LR42610) and black (LR42611) finishes for design versatility.

Technical Specifications (Both Models)

General

Dimensions

• Length: 48.03"

• Width: 1.97"

• Height: 3.11"

Photometric

• CCT Selectable: 3500K / 4000K / 5000K

• Lumen Output: 3450 / 4600 / 5750

• Beam Angle: 120°

• CRI: 80

Electrical

• Wattage Selectable: 30W / 40W / 50W

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hrs

• Dimmable: 0–10V

• Power Factor: 0.9

• Lumen Efficacy: 115 lm/W

• Yearly Operating Cost: $6.02

• Operating Temperature Range: -4°F to 113°F

Packaging

LR42610 – White

• UPC: 793888441446

• Master Barcode: 10793888441443

• Master Carton Dimensions: 50.4" x 9.64" x 11.9"

• Case Size: 12

LR42611 – Black

• UPC: 793888441545

• Master Barcode: 10793888441542

• Master Carton Dimensions: 50.4" x 9.64" x 11.9"

• Case Size: 12
